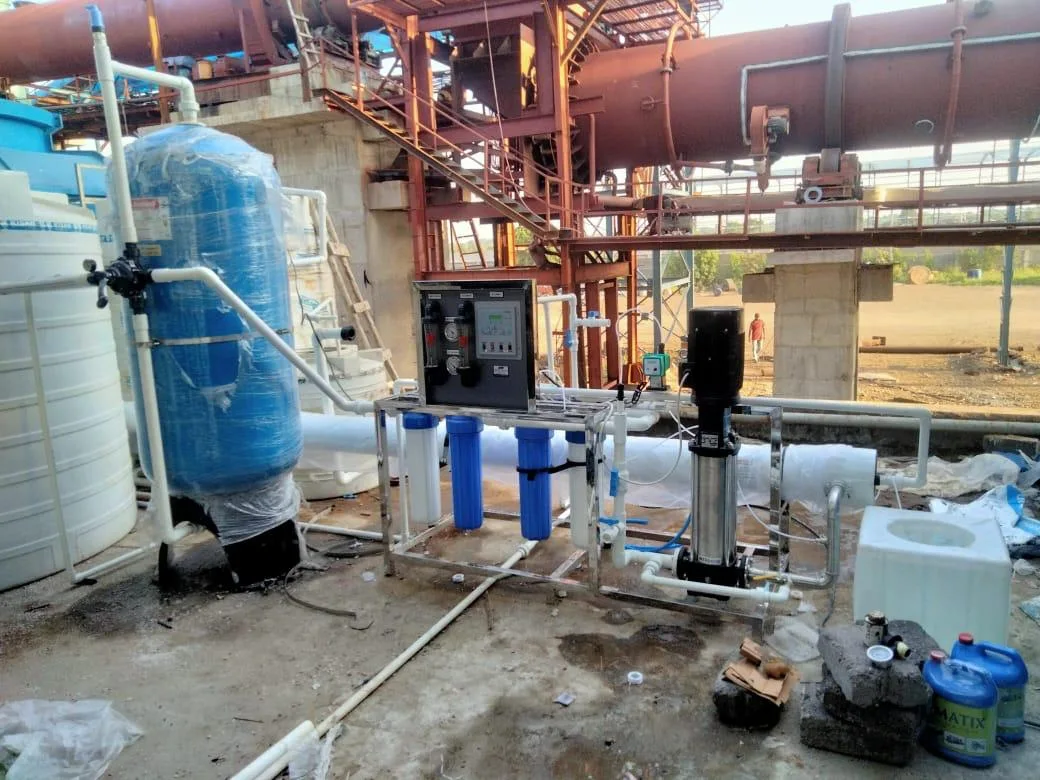

Industrial RO Plants – Reverse Osmosis Plants
RO systems remove dissolved salts, heavy metals, and contaminants to produce high-purity water. Ideal for industries, labs, and commercial setups, our RO units ensure safe and reliable water for process use or consumption.
Industrial Reverse Osmosis (RO) Plants are advanced water purification systems that remove dissolved salts, heavy metals, microorganisms, and other impurities from water using semi-permeable membranes under high pressure. RO is one of the most reliable and cost-effective technologies for producing high-purity water across industrial applications.
Water passes through multiple filtration stages, including pre-filtration, high-pressure pumping, and membrane filtration, resulting in high-quality permeate and rejected concentrated water (brine).
Quality & Performance
Our Industrial RO Plants are:
- Built with high-grade FRP/SS skid structures for corrosion resistance and long life
- Equipped with high-rejection RO membranes from leading global brands
- Integrated with pretreatment systems like softeners, sand filters, and activated carbon
- Energy-efficient, designed with low-pressure drop components and VFD pumps
- Fully/semiautomatic options with PLC/HMI-based control panels
We ensure consistent performance, with recovery rates up to 70–80% depending on feed water quality.
Applications
- 🏭 Pharmaceutical & Chemical industries – For process water and ingredient water
- Power plants & Boilers – For demineralized feed water
- 🧴 Cosmetic & FMCG industries – For production and packaging processes
- 🧼 Textile & Dyeing units – For dye bath and rinse processes
- 🍶 Food & Beverage sector – For product water, cleaning, and ingredient mixing
- 🏢 Commercial complexes & Institutions – For centralized purified water supply

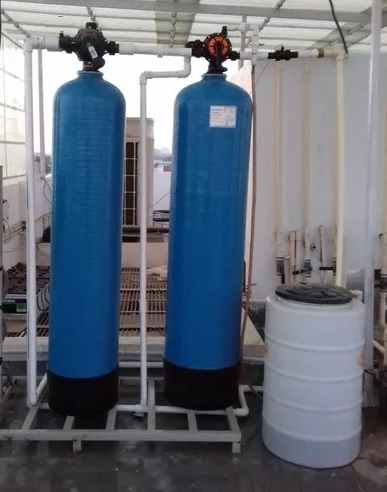

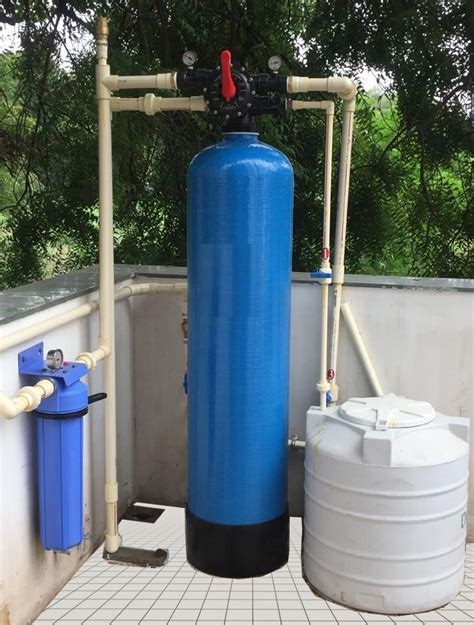

Water Softening Plants
Hard water causes scaling and damages equipment. Our softening plants efficiently remove calcium and magnesium, protecting plumbing, boilers, and household appliances while enhancing water quality.
A Water Softening Plant is designed to remove hardness-causing minerals such as calcium (Ca²⁺) and magnesium (Mg²⁺) from water through a process called ion exchange. Hard water can lead to scale formation in pipelines, boilers, and equipment, reducing their efficiency and lifespan. The plant typically uses cation exchange resin, which replaces calcium and magnesium ions with sodium ions, effectively softening the water.
Quality & Performance
Our Water Softening Plants are:
- Built with high-performance FRP/SS vessels
- Equipped with top-grade ion exchange resin for maximum efficiency
- Low-maintenance with easy regeneration process
- Capable of continuous operation with automatic/semiautomatic control valves
- Durable and designed to withstand high pressure and variable TDS levels
We ensure consistent outlet water hardness below 5 ppm, depending on application requirements.
Applications
Water softeners are widely used in:
- 🧼 Laundry & Hospitality industries – Prevents scale on linen and improves detergent efficiency
- ⚙️ Boilers & Cooling towers – Reduces scaling and enhances thermal efficiency
- Boiler feed water treatment – To prevent scaling and corrosion
- 🧪 Pharmaceutical and Chemical industries – Ensures process stability and product quality
- 🍽️ Food & Beverage industry – For soft water in cleaning and processing
- 🏠 Residential & Commercial buildings – For soft water in bathrooms, kitchens, and appliances

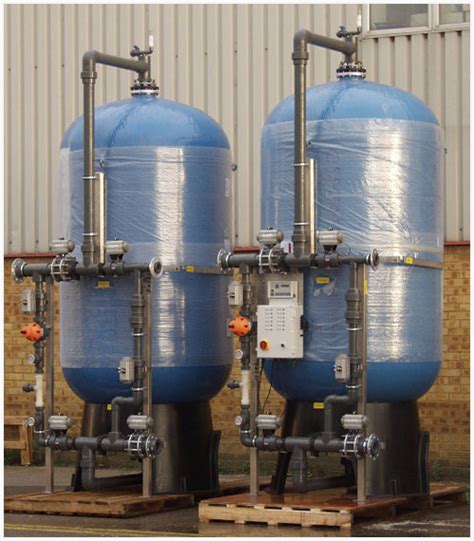

Demineralization Plants
🛠️ Function & Working Principle
Demineralization (DM) Plants are designed to produce mineral-free, deionized water by removing all dissolved salts and ions from raw water using a two-stage ion exchange process. These plants typically use cation and anion exchange resins, arranged in separate columns or mixed bed configurations.
These plants typically use cation and anion exchange resins, arranged in separate columns or mixed bed configurations.
In the process:
The cation resin removes positively charged ions like calcium, magnesium, sodium, and iron.
The anion resin removes negatively charged ions such as chloride, sulfate, nitrate, and carbonate. The result is high-purity water with conductivity as low as 1–2 µS/cm.
Quality & Performance
Our DM Plants are:
- Designed with premium-grade FRP or MSRL vessels for durability and corrosion resistance
- Equipped with high-capacity ion exchange resins for long service cycles
- Available in automatic, semiautomatic, or manual modes
- Fitted with conductivity meters for real-time water quality monitoring
- Optimized for low chemical consumption during regeneration
We ensure consistent outlet water quality as per industry requirements — ideal for critical process applications.
Applications
Demineralized water is essential in:
- ⚗️ Pharmaceutical & Chemical industries – For formulation and production
- 🔬 Laboratories & Research units – For analytical processes
- Boiler feed water treatment – To prevent scaling and corrosion
- 🧪 Electronics & Semiconductor industries – For circuit board cleaning and rinsing
- 🧴 Cosmetic manufacturing – For ingredient water in skin and hair products
- 🏭 Power plants – For turbine and condenser systems

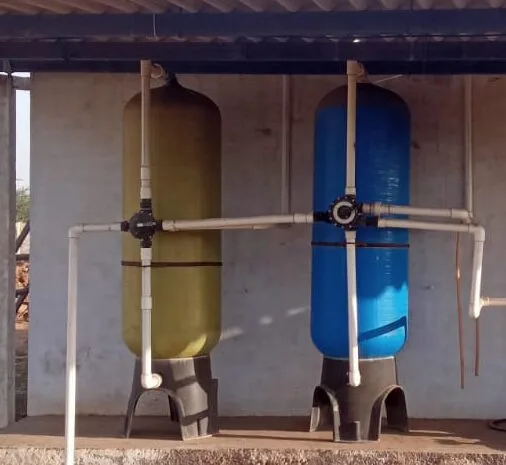

Pressure Sand Filter & Carbon Filter (Dual Filtration System)
Sand Filter: Our Sand filtration system effectively remove iron, turbidity, and suspended particles. A reliable first line of defense for treating groundwater or borewell water in domestic and industrial applications.
Activated Carbon Filter: Our carbon filters are Designed to absorb chlorine, odor, organic matter, and color from water. High quality coconut shell based Activated carbon are used to fill carbon filters which are are essential for improving taste and preparing water for further treatment stages like RO or UV.
Quality & Performance
Our Dual Media Filter Units are:
- Made with robust FRP, MS, or SS vessels for industrial durability
- Filled with high-efficiency filtration media with layered bed design
- Equipped with automatic or manual backwashing systems
- Designed for high flow rates with low-pressure drop
- Ensuring consistent performance with inlet–outlet pressure gauges and sampling ports
We offer custom sizes based on flow rate, TDS, and water quality for maximum filtration efficiency.
Applications
Sand & Carbon Filters are used as pretreatment systems in:
- 🧼 Water Softening and RO Plants – To improve membrane and resin life
- 🏭 Pharmaceutical & Food industries – For pre-process water filtration
- 🧴 Cosmetic & FMCG industries – To eliminate odor and chlorine
- 🧪 Chemical industries – To reduce organic impurities and protect downstream systems
- 🏢 Commercial complexes & Institutions – For potable and process water supply
- 🏠 Residential societies – In water treatment for centralized filtration systems
Sand filter and carbon filter for water and waste water filtration application
The Sand Filter and Activated Carbon Filter system is a two-stage filtration unit designed to remove suspended solids, turbidity, organic contaminants, chlorine, odors, and color from water. This combination ensures effective physical and chemical filtration before the water proceeds to softening or RO treatment.
Sand Filter: Uses graded silica/quartz media to trap suspended particles, dirt, and turbidity from raw water.
Activated Carbon Filter: Adsorbs organic compounds, chlorine, pesticides, and unpleasant tastes or odors, improving water clarity and quality.
